Bellow Seal Forged Gate Valve

Bellow Seal Valves are the Primary Focus of Shrikar Valves Pvt. Ltd. and we make sure we manufacture and provide the best Industrial valves there are.

The Following are the technical details and some prominent features of the Bellow Seal Forged Globe Valve, one of the best among the range of Bellow Seal Valves manufactured by Shrikar Valves.

Technical Information

  • Design and manufacture: API 600
  • Inspection & Test: API 598
  • Face-to-Face: Manufacurers std
  • End Connection: Socket Weld ends to ASME B16.11.
  • Size & Pressure : 1/2″~2″, ANSI CLASS 150 to CLASS 1500
  • Materials of main parts: Forged Steel (A 105/F6/F11/F22); Stainless steel (F304/F316/F304L/F316L).
  • Bellow material: AISI316Ti, INCONEL, HAST C-276.

Design Features

  • Fully welded Valve body/bonnet and bellows.
  • Rising stem, non rising hand wheel ensure linear movement of stem.
  • Full size safety gland packing made of pure graphite/PTFE.
  • Metal back seat acts also as stroke limiter in open position.
  • Multiple wall, fully flushed stainless steel IMPORTED bellows, designed for 5,000 cycles; fully welded.
  • Solid wedge made of hard chromium steel AISI 410 or reinforced with stellite 6.
  • Press Fitted Body Seat in AISI410 or hard faced with stellite 6 or 21.

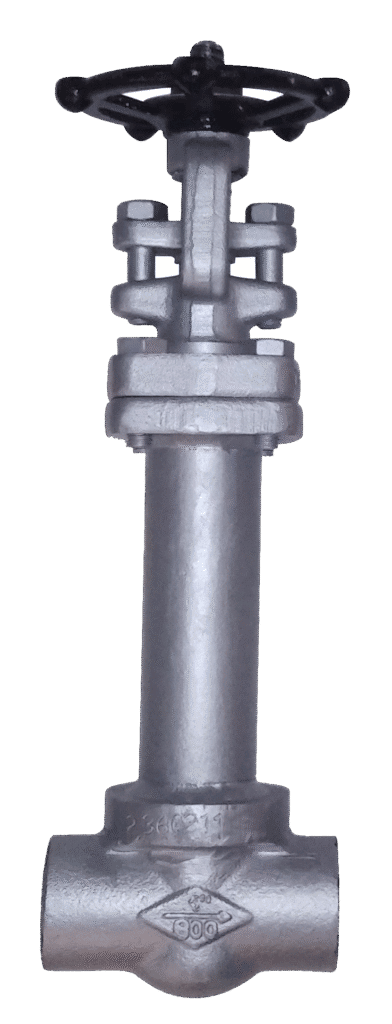

Shrikar Bellow Seal Forge Gate Valve
Shrikar Bellow Seal Forge Gate Valve
